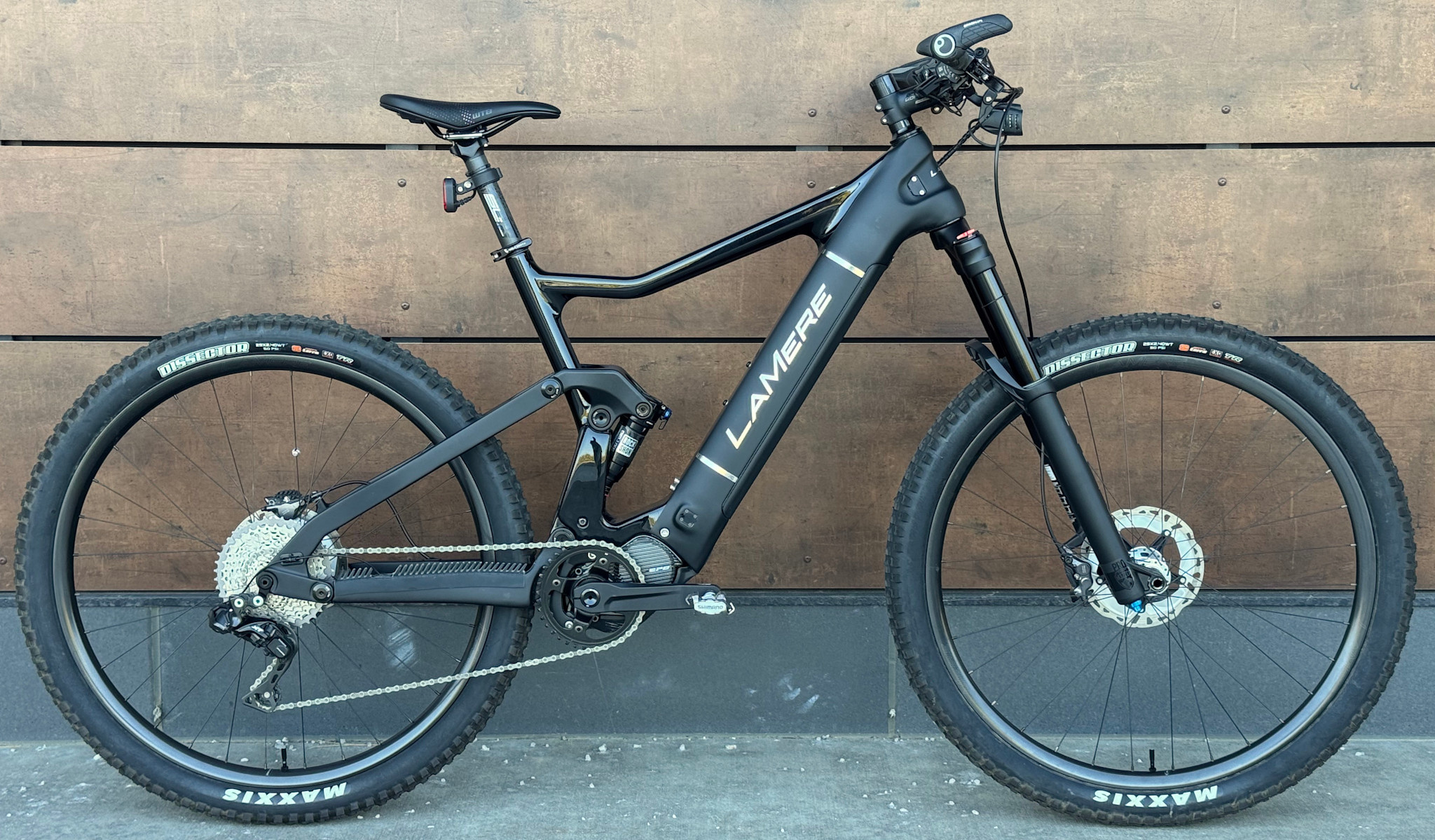

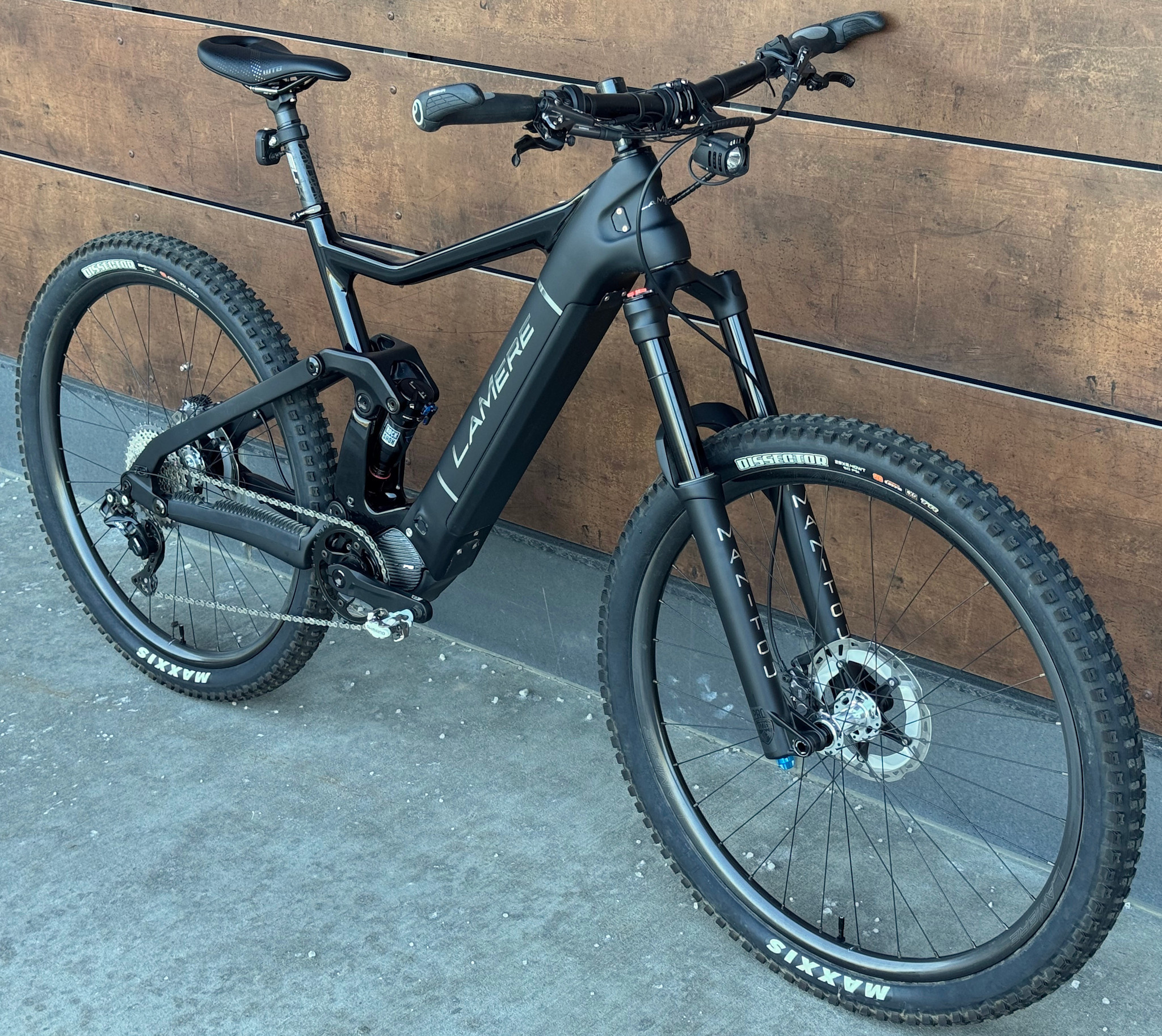

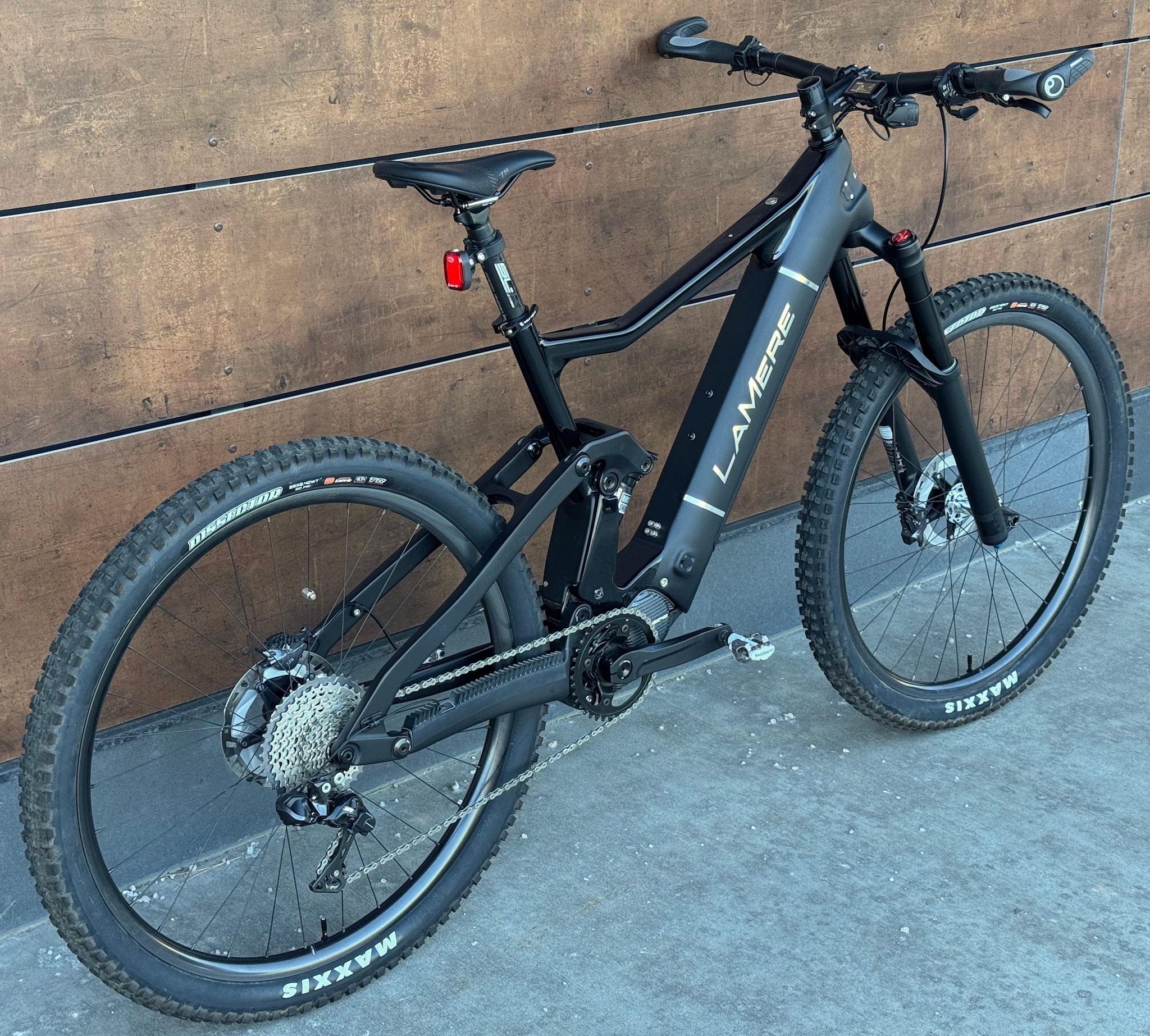

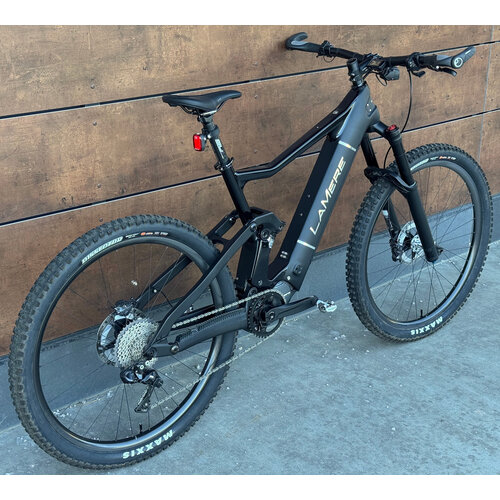

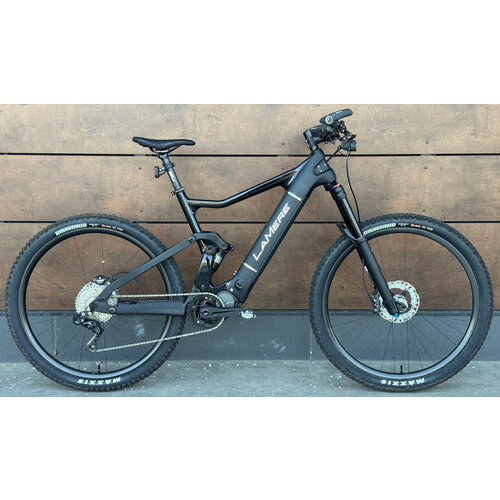

2024 Diode V4 Demo, Sz. Large 19", Black, Internal Battery

A new Diode V4 Demo eMTB! Size Large, 19", Shimano Deore XT Di2 11-speed drivetrain, Shimano EP8 motor & 720Wh battery, XT brakes, LaMere carbon wheelset with Maxxis Dissector tires, Manitou Mezzer Pro fork, and RockShox Deluxe Ultimate shock. Plus, NiteRider EPro lightset hardwired in.

Build Spex:

Frame Type and Size: Diode, Carbon, Large 19"

Fork: Manitou Mezzer Pro, 160mm

Rear Sus: RockShox Deluxe Ultimate RCT

Drivetrain: Shimano Deore XT 11-speed Di2, 11-42T cassette

Wheelset: LaMere carbon 29er wheels, 33mm wide, Boost spacing, Bitex hubs in black

Tires: Maxxis Dissector 29x2.4"

Cranks & Chainring: FSA SMN eBike cranks, 170mm, with Shimano 38T chainring

Brakes: Shimano XT M8100 dual-piston hydraulic

Handlebar: SQ Lab 3OX, Carbon, 720mm wide, 12deg backsweep, Mid-Rise

Stem: FSA V-Drive, 80mm, 6 degree

Grips: Ergon GP3

Motor & Battery: Shimano EP8 motor with internal 720Wh battery

Saddle: WTB Devo Pickup, Medium, Cromoly

Seatpost: FSA SL:K carbon SB0; Wolf Tooth seatpost clamp; Does have internal routing for dropper post

Weight of Medium Sans Pedals: 45.99 lbs.

BB Height: 340mm

Only 86 miles on the odometer!

All LaMere bikes are hand-built here in MN, we can make any changes to this bike you want just let us know!
