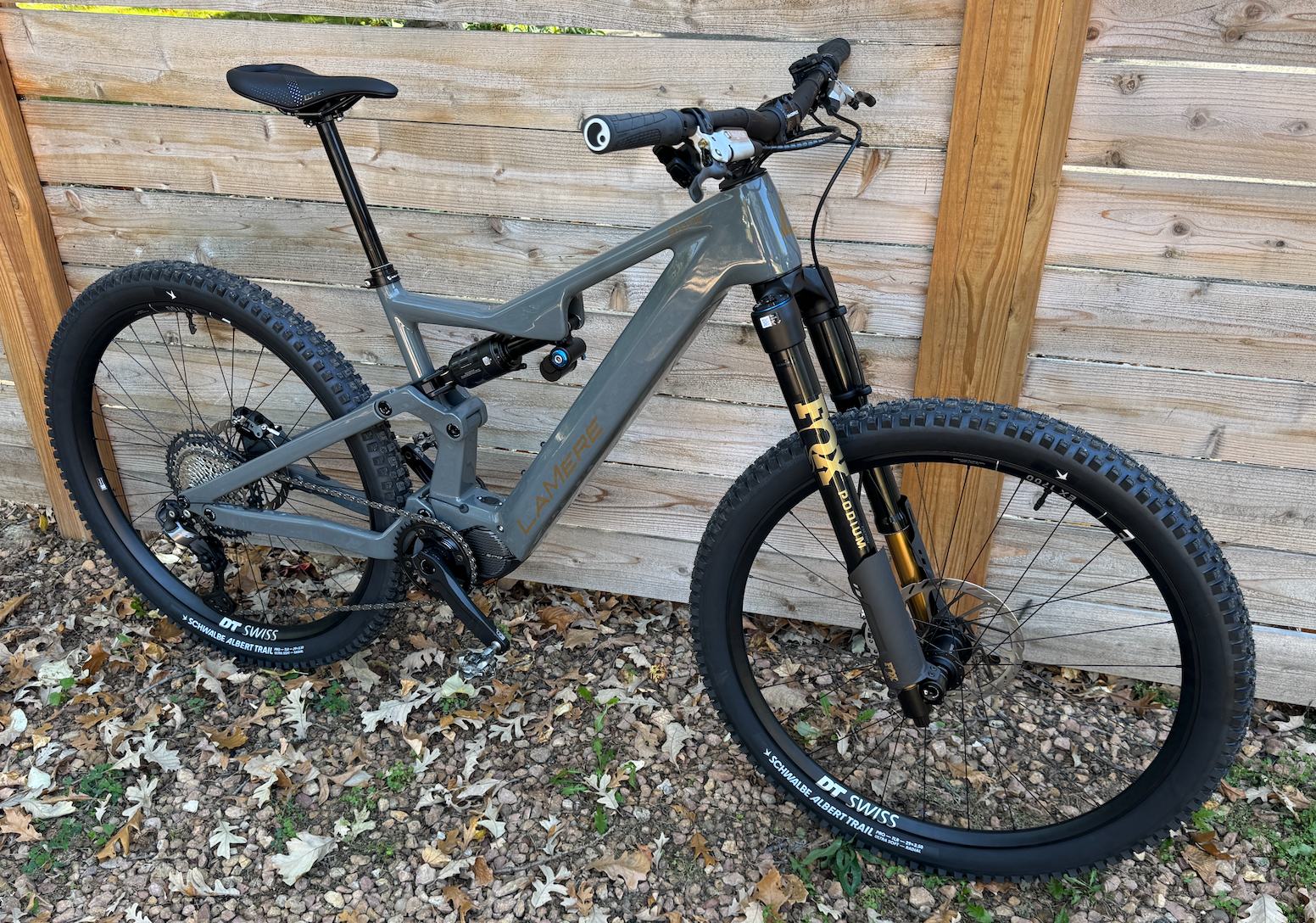

2026 Diode V7, JP's, 29er, Fox Podium
Our newest Diode V7 build featuring updated geometry for a better ride on any adventure. Using the latest Shimano EP801 motor system capable of class 1-3. Built with top of the line components able to handle anything you can throw at it. Read more
Build Specs:
Frame Type: MD, Diode V7
Fork: Fox Podium Factory, 160mm
Rear Shock: Fox Float X2 Performance Elite
Drivetrain: Shimano Deore XT 12-speed Di2, 10-51T cassette
Wheelset: DT Swiss EX 1700, Aluminum Wheelset, 29"
Tires: Schwalbe Albert Gravity Pro, 29" x 2.5"
Cranks & Chainring: FSA SMN, 165mm, Shimano 36T Chainring
Brakes: Sram Maven Ultimate B1, Ti Hardware, Carbon Lever
Handlebar: LaMere Factory, Carbon, 780mm wide, 8deg backsweep
Stem: Race Face Atlas, 65mm, 0 Deg, Black
Grips: Ergon GA3
Motor & Battery: Shimano EP801 Drive Unit, Internal 630wh Battery
Saddle: WTB Devo, Chromoly, Medium
Seatpost: Wolf Tooth Resolve dropper with Wolf Tooth Remote Pro lever

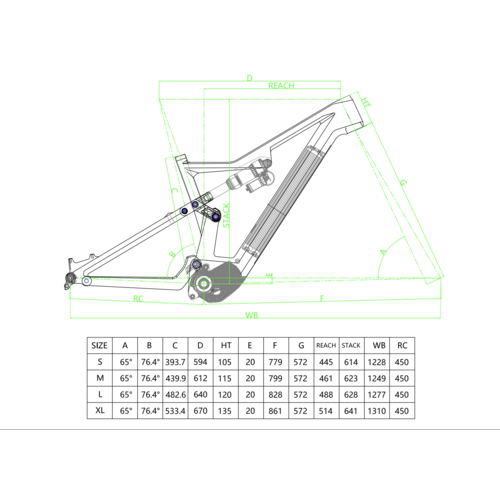

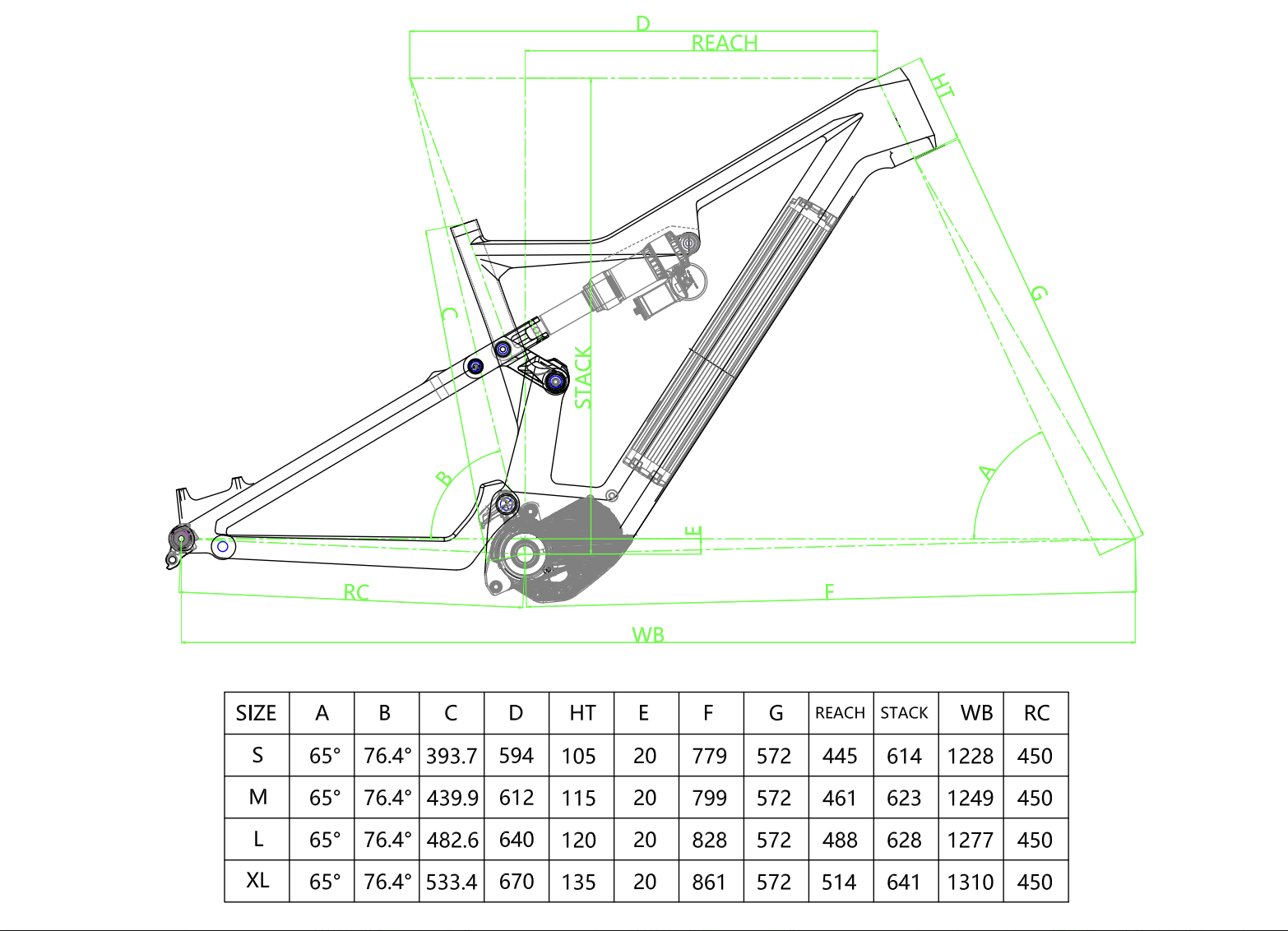

BB Height: 355mm
